Crash Rated Gates

"Designed in Germany, Manufactured in India"

The M50 Tracked Sliding Gate provides protection from vehicle based attacks and is therefore ideal for all critical infrastructure applications or other designated high risk areas with large openings. The robust sliding gate design with shallow foundations is manufactured from heavy gauge material and high tensile steel offering reliable operation and low maintenance.


Main Features

  • Designed according to PAS 68:2013 & ASTM
  • High speed opening and closing, suitable for frequent use applications
  • Shallow foundation depth
  • Tri-Protect anti-corrosion protection coating
  • Accredited by Secured by Design

Blocking Height

Gate height: 2000, 2500 and 3000mm (incl. 100mm ground clearance)

Clear width between Posts

Clear width of opening + 200mm

Frame Width

Clear width of opening + 2308mm

Design

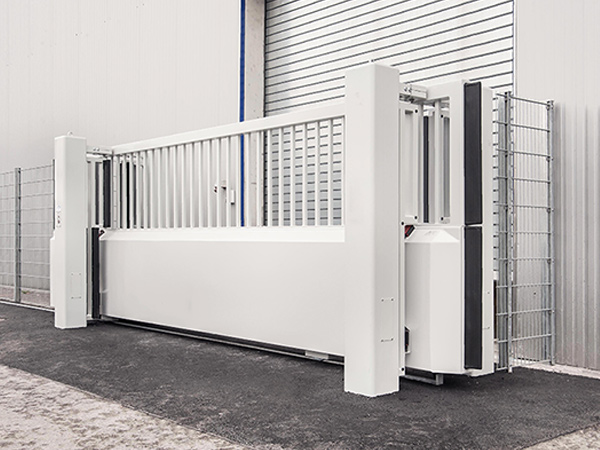

Crash rated sliding gate on ground track with electro-mechanical drive unit, guiding portal, receiving portal and gate leaf consisting of bottom impact beam and top gate leaf panel.

Clear width of Opening

3000 - 7000mm in 1000mm increments

Certification

ASTM F 2656-07 M50/P1
PAS 68:2010 V/7500[N3]/80/90:0.0/4.3 (tested with 7.0 m CWO)

Weight

Approx. 4710 – 6950kg (depending on CWO and gate height)


Specification

Ground Track

S10 to bolt onto top edge of foundation, top of rail 20mm above finished floor level

Foundation Depth

400mm (shallow foundation)

Foundation Top Edge

100mm below finished floor level

Emergency Operation

Manually after disengagement of motor by clutch lever

Operating Speed

Normal operation: up to 0.4 m/s

Drive

1.5 kW, 400 V (three-phase), 50 Hz

Control Unit

WE-Tronic II in control box installed in drive column, control voltage 24 V

Supply Voltage

400 V (3Ph + N + PE), 50 Hz

Control Box (HxWxD)

400 x 600 x 200mm, IP66

Applied Standards

  • DIN EN 13241 Industrial, commercial, garage doors and gates - Product standard, performance characteristics
  • EC-Machinery Directive (2006/42/EC)
  • EMC Directive (2014/30/EU)

Colour

  • RAL 6005 – moss green
  • RAL 7016 – anthracite grey
  • RAL 7030 – stone grey
  • RAL 7035 – light grey
  • RAL 9010 – pure white

Colour Drive Column

RAL 7035 – light grey

Finish

  • Tri-Protect® Long-term anti-corrosion protection coating according to DIN 55633 corrosion category C5.
  • For M50 Tracked sliding gates with a 7000mm opening the bottom impact rails are treated with the Tri-Protect® wet spray application. This provides a corrosion category C4.

Temperature

  • Control unit: -10 °C … +50 °C
  • Drive unit: -20 °C … +40 °C (with power reduction up to +60 °C)
