Parking Guidance system

Smart solution to guide drivers to the available parking lot easily and quickly.

Video-based Parking Guidance System (VPGS) is PGS solution using video analytics technology. Unlike any traditional PGS solution such as ultrasonic, geo-magnetic sensor, IP camera sensor recognizes the vehicle license plate number on each parking lot

that enables to propose a value-added features of video-surveillance, Find-My-Car, and others by one single platform.

Benefits

  • Spend less time to search
  • Improve security
  • Maximize the use of parking structures
  • Operate car park efficiently

Key Features

Parking Guidance
Drivers can easily and quickly find the available parking lot simply following guidance displays and LED indicators. Guidance display shows how many places are available by level and zone, and LED indicator shows the availability of the spaces under the indicator.

Find-My-Car
Drivers do not need to remember where they parked the vehicle. Find-My-Car feature shows the route map with the shortest way to get to the location using KIOSK and mobile application

Emergency Support
VPGS has no blind spots surveillances feature even the underneath camera. The installation of the additional CCTV camera system is not required. When emergency arises, the situation can be monitored in center by the camera connected to the emergency bell.

Automatic Operation
Each parking lots can be managed by the operating program. Any specific accessible parking spaces for staff, disabled, and so on can be assigned by dynamic operation feature.

COMPONENTS

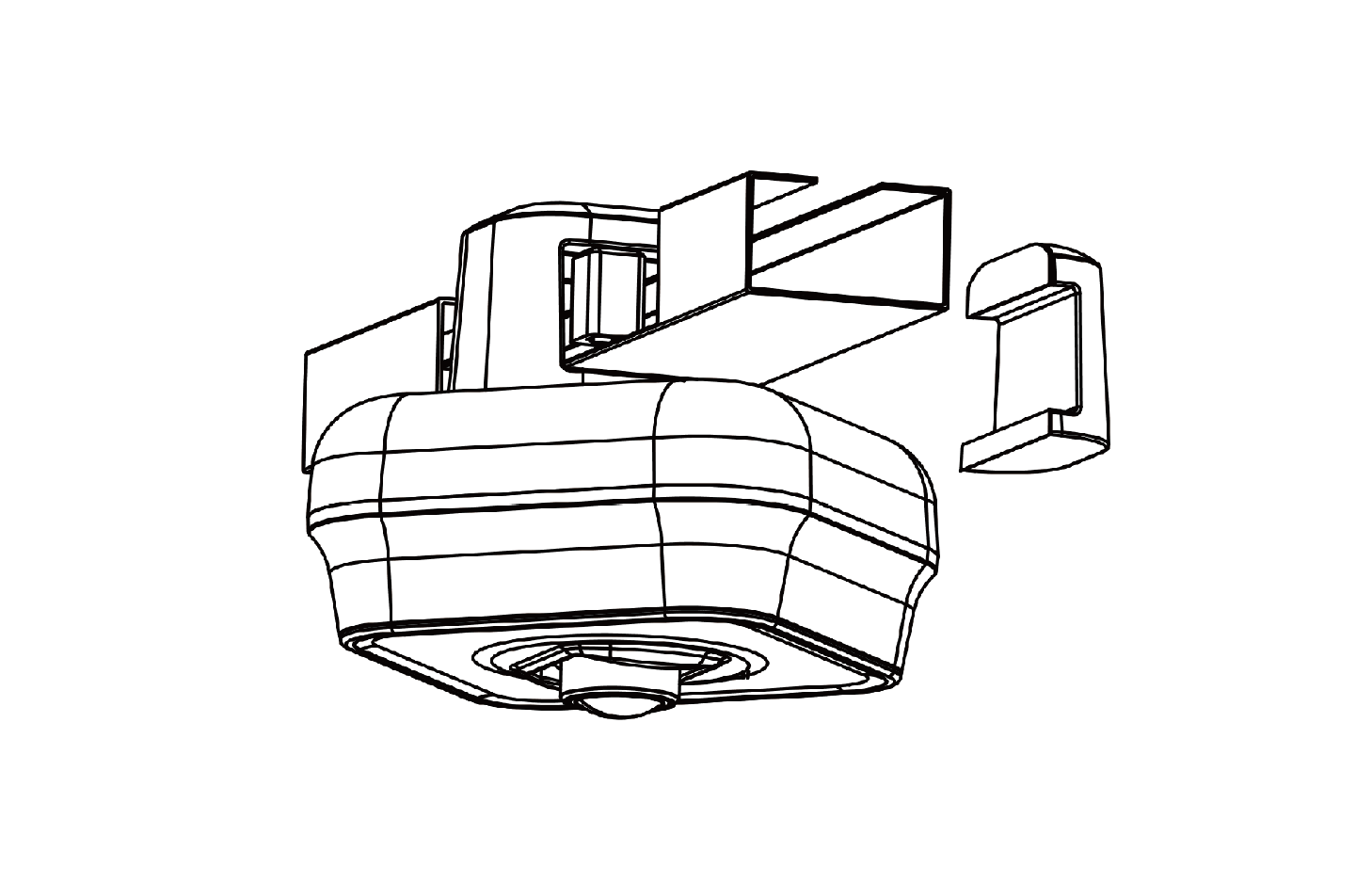

OMNI-DIRECTIONAL IP CAMERA SENSOR

NPG-OMC12NW

Installed in the middle of driveway on the ceiling to detect cars in parking spaces and recognize license plate number

(01) Fish-eye Lens 360 degree panorama view

Omni-directional IP camera sensor uses fish-eye lens which has a 360 degree panorama view. This model is much economical because it covers Max. 6 parking lots for LPR and Max. 12 parking lots for detection concurrently. Also there is no blind spot for security surveillance

(02) Designed in an unique way and good-looking

One of the strength of this model is its good and unique design. NEXPA thinks the interior design factor too for your parking.

(02) Easy to install

This model is designed to be very easy to install and reduce the installation costs. You can only install IP camera sensor in the middle of driveway on the ceiling. the recommended width of driveway is 6 meters (Max. 8 meters) and installing height is 2300~2400mm.

TECHNICAL SPECIFICATION

Imaging Device SONY 1/1.7inch 12.4M CMOS
Effective Pixel 4,072(H) x 3,046(V)
Scanning Method Progressive scan
Operating Illumination 20 lux @ F2.4
Electronic Shutter 37-600137 (unit : micro sec.)
Other Functions High Intensity LED lights, up to 128 programmable colors / WDR / Defog
Ethernet RJ-45 (100/1000 BASE-T)
Video Compression H.264 BP/MP/HP, MJPEG/JPEG Baseline encoding
Real-time Multi-stream H.264 - 3840x2160@30fps + 1080p@30fps + 3840x2160@2fps JPEG snapshot
Bitrate Control H.264 - CBR, VBR, AVBR, FIXQP
Operation Environment Operation temperature / humidity: -10℃ ~ +55℃ / Under 90% RH
Power Supply PoE (IEEE802.3af class3)
Electricity Consumption Approximately 10W
IP rate IP54

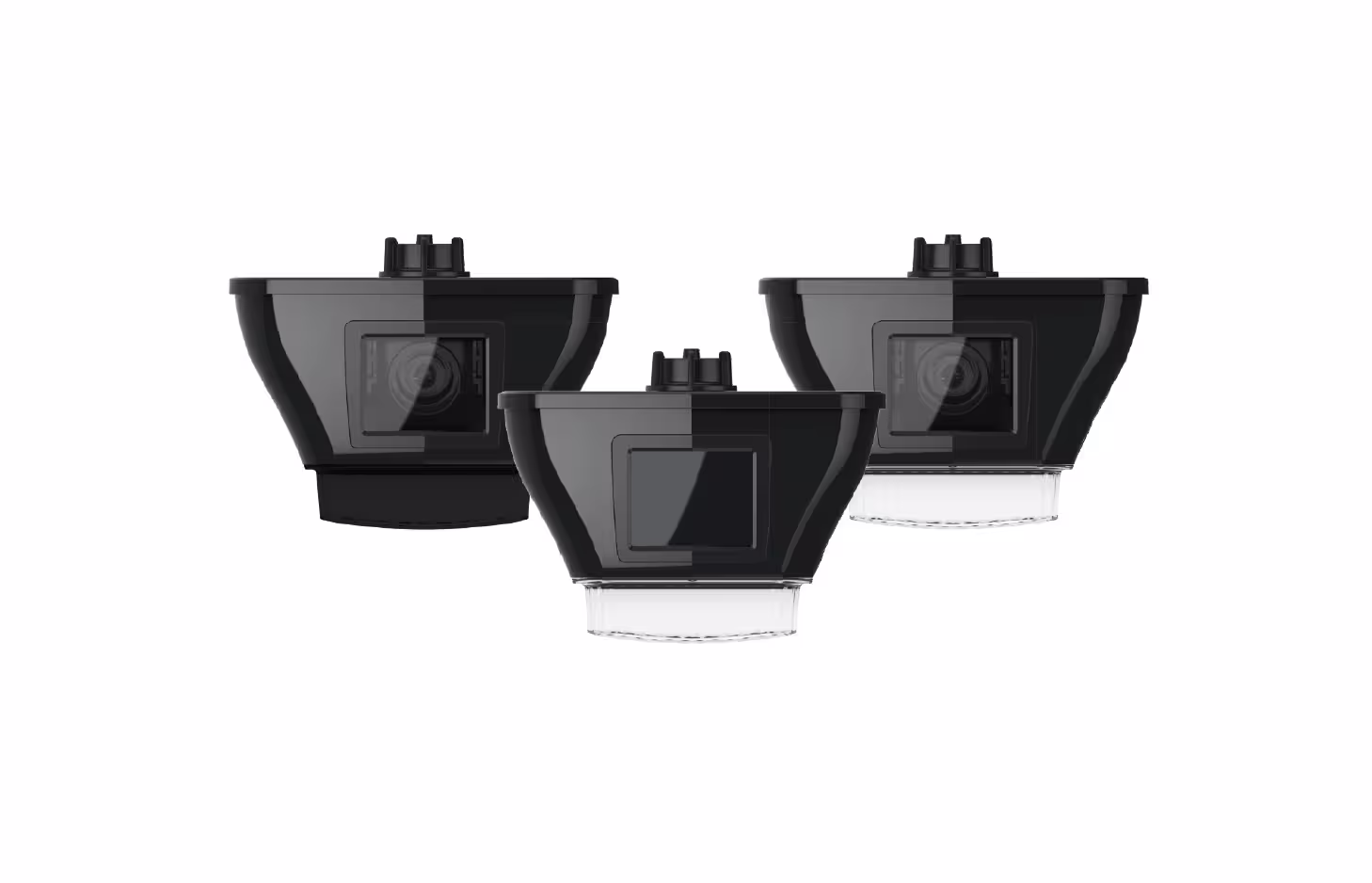

Uni-directional IP Camera Sensor

NPG-MUC12/PGCA

Installed on the 2 lines of raceway in a corridor to detect vehicles on the opposite side row and recognize license plate number

(01) Client oriented IP Camera Seonsor

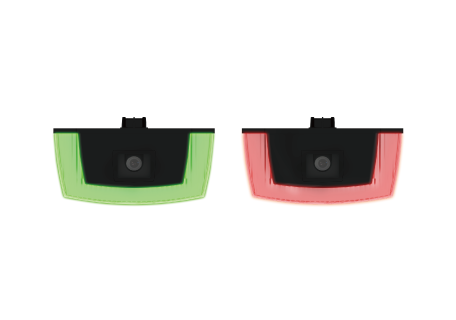

The embedded LED indicator of uni-directional IP camera shows the availability of the parking lot(s) underneath. Also, the sub LED indicator can be connected to show the each parking lot's status for drivers and guide them much faster.

(02) Various types for project site conditions

This model has various types for different site conditions; Type A, B, and LED indicator. Type A is a normal type which has camera and LED indicator. The others only has a camera or a LED indicator for the case that there is not parking lot row on the opposite side.

TECHNICAL SPECIFICATION

Imaging Device 1/2.3" 12.4M CMOS (Rolling shutter)
Total pixel 4072(H) x 3046(V)
Scanning Method Progressive scan
Operating Illumination 20 lux F1.4
Electronic shutter Minimum / Maximum (1/12000~1/15 second)
Ethernet RJ-45 (10/100 BASE-T)
Video compression H.264 (MPEG-4 part 10/AVC), MJPEG
H.264 Maximum 15fps@4032*3024
MJPEG Maximum 15fps@4032*3024
Bitrate control H.264 - CBR or VBR / MJPEG -VBR
Power Supply PoE (IEEE802.3af class3)
Electricity consumption Maximum 5W
LED 256 color LED drive circuit include
Zoom & Focus Zoom & Focus drive circuit include

Uni-directional IP Camera Sensor

NPG-MUC5/ISA

Installed on the 2 lines of raceway in a corridor to detect vehicles on the opposite side row and recognize license plate number

(01) LPR on parking lot

NEXPA's IP camera sensor detects an incoming vehicle and recognizes the license plate number on parking lot. It makes easy and efficient to manage car park with the obtained data. This model detects Max. 3 parking lots.

(02) Various Types for project site conditions

This model has various types for different site conditions; Type A, B, and LED indicator. Type A is a normal type which has camera and LED indicator. The others only has a camera or a LED indicator for the case that there is not parking lot row on the opposite side.

TECHNICAL SPECIFICATION

Shooting Trigger / Video
Input Voltage AC220V / 60Hz
Camera Digital CCD 1.3M Pixel
Shutter Speed Auto
Recognition Speed Within 0.8 second
Lens 5 ~ 50mm
Lighting Infrared high brightness LED lighting
Recognition Rate Over 99% (Korea base)
Display Board Module 28mm(W) x 64mm(H)

KIOSK

NPG-PSK100/M

Provides "Find My Car" service which helps customers to find the location where their car parked. Customers check the location simply by entering license plate number on KIOSK.

(01) Built-in LED Display Panel

It shows the recognized license number and other information applicable.

TECHNICAL SPECIFICATION

Display 32 inches
Resolution 1920 x 1680
CPU Intel Dual Core 2.5Hz
Memory DDR 2G MB Max
LAN 10/100 1 port, 1000 2 ports
Average Brightness 300 cd/m2
Size 833(W) x 11150(H) x 350(D) mm
Input Voltage AC110 ~ 220V
USB 2 ports / Front 2 ports
Serial 2 ports
